Filesystem
Filesystems means how the storage is used organized and used by the operating system.
The storage systems refer to hardware which has physical space and firmware on top of it which physically reads and writes to specific addresses.
While filesystems refer to the software which then utilizes the storage system to have an hierarchical directory structure on top of a plain disk, control its permissions, etc. The filesystem software then decides how it would like to use this plain storage.
Preparing Disks
Formatting a disk
When we format a disk, it basically means the storage is prepared to be used by a specific software such as ext4, NTFS, FAT, etc. This means, the disk's header blocks are written with certain filesystem specific information and also mounting status.
It means the clearing the existing data and creating super block of that storage, root inode information, etc.
For the underlying storage, super block and other information are just stored in a regular place. It has no special meaning for the storage hardware itself.
Map filesystems to mount points
fstab file has the mapping of all filesystems to different directory in the full file structure hierarchy.
This file shows which storage system is mounted at which directory.

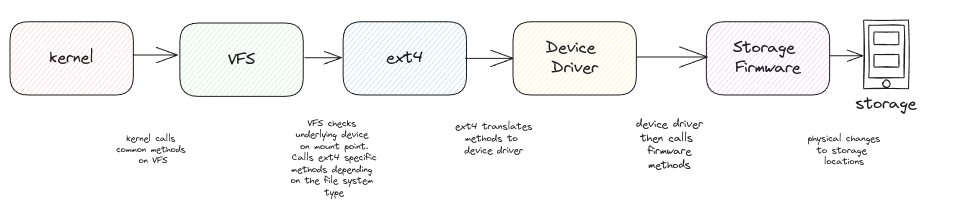

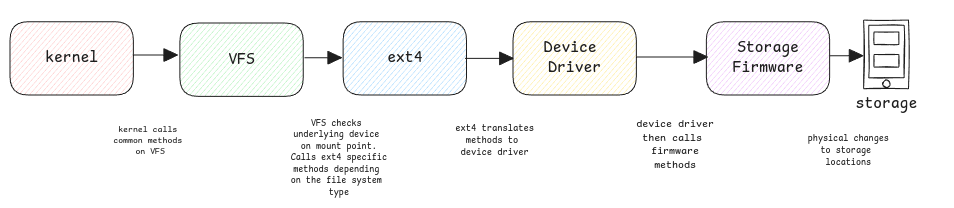

When system boots, all hardware is detected and using the data at /etc/fstab they're mounted (linked) to different directories and depending on the filesystem type in this file, the VFS then speaks to the underlying storage system to get files and directories information.
Mounting a filesystem
The filesystem information exists in the OS files always. Irrespective of whether the disk is physically present or no. But only after the mounting the disk, the files will be accessible in the address mentioned in the inode structure.
So mounting a filesystem actually means, the underlying storage of the filesystem is now available for the kernel to access.
Storage Software
Device Drivers
These are the common methods called by the filesystem code such as ext4 or NTFS irrespective of the underlying device. If the underlying disk is an SCSI disk, then the SCSI driver is used.
Storage Firmware
These are the storage manufacturer methods invoked by device drivers. These methods are mostly about reading and writing data at the specified block address.
Splitting Disks
Partition
A physical disk can be logically split into multiple logical disks and each logical disk can be formatted into a completely different filesystem.
This partitioning of the physical storage is completely transparent to the storage and it's firmware.
Logical Volumes
Volumes are virtual disks. Means, multiple physical disks are grouped and shown as a single disk to the operating system. There is a logical volume manager that sits on top and handles all the mapping of files to underlying blocks.
Storage without a filesystem
There are use cases where the disks can exist without any filesystem, means the block storage is used as it is.
For example, some databases use the block devices as it's and manage the blocks themselves. Same also with LVMs in Linux. The disks are used as plain block devices and the filesystems are created at the logical volume level.
Filesystem block size
It's the minium size used by the filesystem to manage files. This means, if the block size is 4KB, even a file with just one letter with block 4KB space on storage. Mostly the size of the block is kept same as the physical sector size for better performance.
sectors sizes are something managed by the firmware.
