Namespaces

Namespaces are a logical split of processes by the kernel. When you start a process, you can give it 0 or 1-N types of namespaces.

• 0 means, the newly started process inherits everything from the parent PID.
• 1-N means, we can specify another namespace for any of the resources.

Impact on kernel

One idea is key. The kernel is just like any other program. It stores its runtime data in C structures.

1. These C structures are namespace specific.
2. The same kernel code runs each time. Only the data it works on changes, based on the namespaces.

Everything is Linux is related to a process

Everything in Linux runs as a process and every process has a set of namespaces.

This is exactly what makes namespaces work. When the kernel runs a function, it pulls the namespace data of that process and runs.

Namespace selection

usual misconception

A common myth is this. We think a process starts in its own namespace. It gets its own PID, mount, net, and other namespaces. This isn't true at all.

You can start a process with only its own network namespace. It can inherit the rest from its parent process.

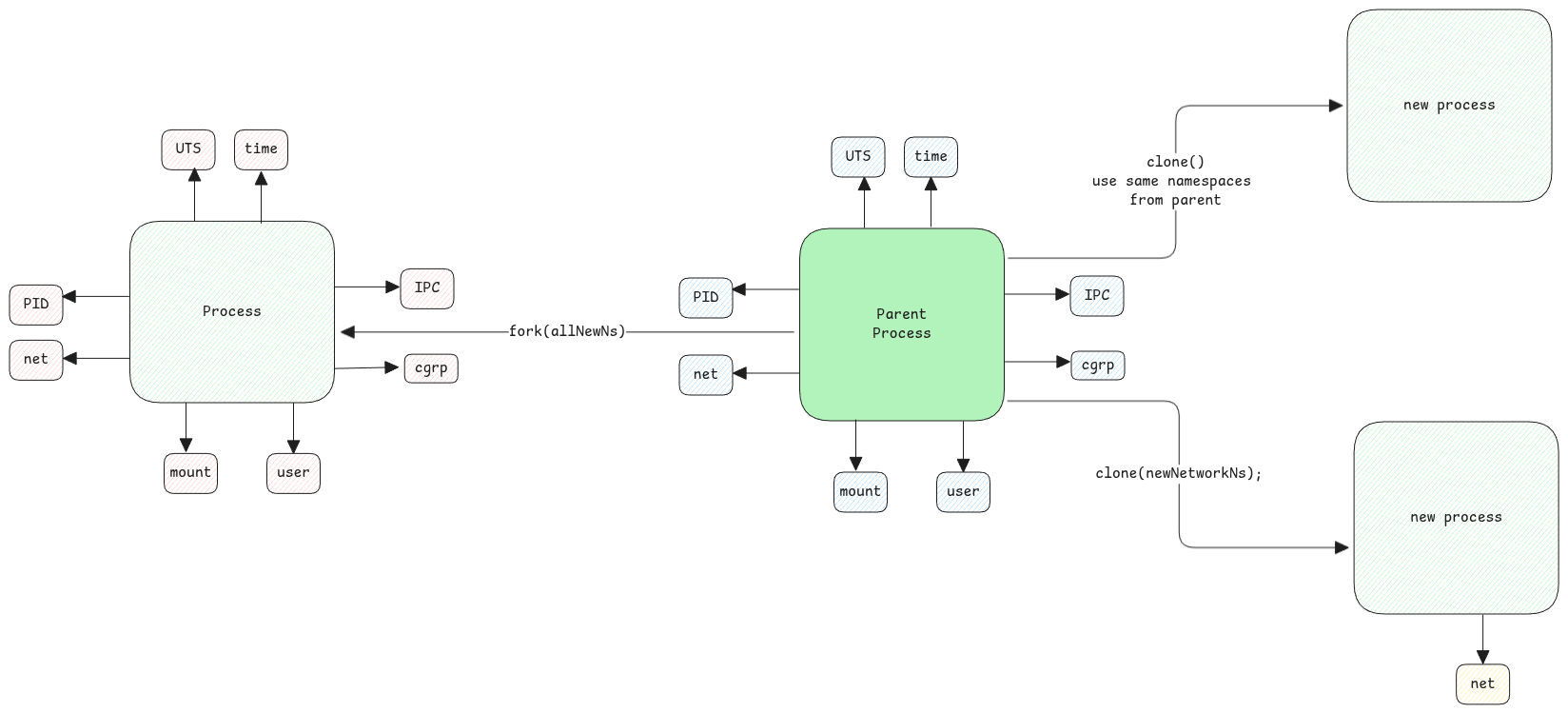

When a process starts, you can choose the namespaces it uses. For example, start a process with no mount namespace. Then it sees the same filesystem as its parent.

Examples

• Docker creates the app process with all the namespaces it needs for full isolation.
• In Kubernetes, a Pod has only its own network, UTS (hostname), and IPC namespace.

Isolation Levels

Resource	One single engine in the kernel	Each namespace gets its own private…	Example command to see the difference
Network	ip_forward(), ip_route_output(), etc.	routing tables, interfaces, IP rules, netfilter tables, conntrack	ip netns list ip route show
Mount	do_mount(), VFS path lookup code	mount points, root filesystem, /proc, /sys, /dev	mount, df ls /proc/self/mounts
PID	schedule(), kill(), task struct handling	process tree, PID numbers, /proc visibility	ps aux ls /proc (compare host vs container)
User	credential checking code	UIDs, GIDs, capabilities, user/group mappings	id whoami
UTS	hostname & domain name system calls	hostname, NIS domain name	hostname uname -n
IPC	System V & POSIX message queue code	message queues, semaphores, shared memory segments	ipcs -q, ipcs -m, ipcs -s
cgroup	cgroup core controller code	cgroup hierarchy membership, resource limits (CPU, memory, etc.)	cat /proc/self/cgroup systemd-cgls
Time	clock access system calls (since kernel 5.6)	offsets for CLOCK_MONOTONIC, CLOCK_BOOTTIME	clock_gettime(CLOCK_MONOTONIC) inside vs outside container

Each namespace provides different levels of isolation based on the type of resource.

• PID namespace - this one is hierarchical. The parent can still see the processes in the child namespace.
• Net namespace - this one is fully isolated. Network namespaces aren't hierarchical. Each talks to the network hardware as a separate network.
• Mount namespace - all the host data is visible to every mount namespace. It only changes the logical 'view' of the paths on the disk.

mount namespace is for mount points

A mount namespace isn't for disks or filesystems. It's only for mount points. This nuance is important.

How different namespaces are created

Each namespace type, such as PID, network, or mount, is backed by a kernel C structure. When you create a new namespace of a type, a new object of this structure is made. It's linked to the process's nsproxy structure.

nsproxy struct

As we know every process in Linux has a corresponding struct task_struct. See the linux process structure doc for more details.

This struct has a pointer to another one, struct nsproxy. That structure references all the process's namespace objects.

Standard Streams

Start a docker container, or any process with an isolated namespace. Its standard streams are set to the parent process that ran it. That's why the app's output shows on the terminal that started it.

cgroup

cgroup is short for control groups. With cgroup, you can limit the physical resources given to these namespaces.
